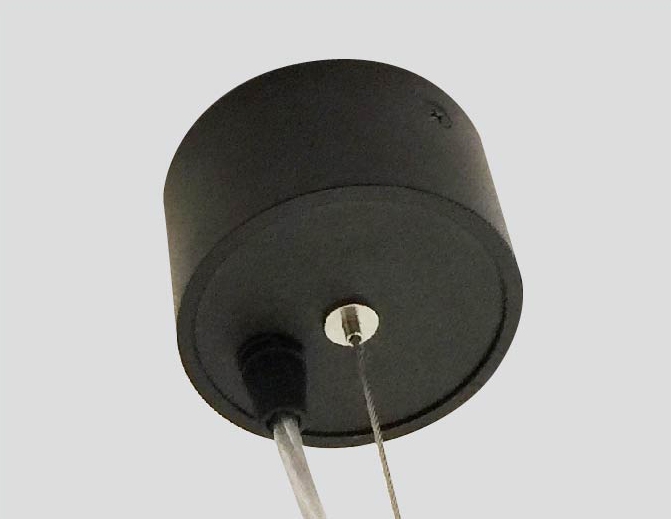

Surface Mounted Canopy suitable for pendants in non-dim versions. Two options are available depending on the weight of the fitting and the aesthetic required. The J-Box String Disc is suggested for use with heavier fittings.

Technical Data

Dimensions
dia: 76mm
h: 45mm
Mounting Holes (for bracket)
width: 45.5mm apart
holes: M5 (5mm)

Product Details

Application
Surface/Ceiling Mounting
Colours
Black
White
Silver
Custom
Materials
Galvanised Steel
Aluminium
Options
- String Disc w push lock cable grip
- Drop Disc
Maximum Load Weight
- String Disc w push lock cable grip: 2-10Kg
- Drop Disc: 0-2Kg

J-Box Canopy
