Gunn Fixed

LED fixed downlight with dual reflector system to provide smooth glare-free output. Available in 15W or 21W models. Multi-chip technology means constant colour temperature. Assembled in Australia from corrosion resistant componentry. Easily customised.

Technical Data

Input Power
240V 350mA (15W) driver c/w flex and plug
240V 500mA (21W) driver c/w flex and plug
Power Consumption
15W or 21W
Colour Temperature Available       2700K, 3000K, 4000K
CRI
92
Lumen Output
(15W)      2700K      900 lm
(15W)      3000K    1000 lm
(15W)      4000K     1100 lm
(21W)      2700K     1200 lm (21W)      3000K     1363 lm
(21W)      4000K    1500 lm
Lumen Maintenance
70% at 50 000 hrs
Dimming
TE Trailing Edge (Standard)
DD Dali Dim
DC 1-10V DC Control
Cut Out
90mm

Product Details

Application
General Illumination
Trim Colours
White, Black, Custom Colours

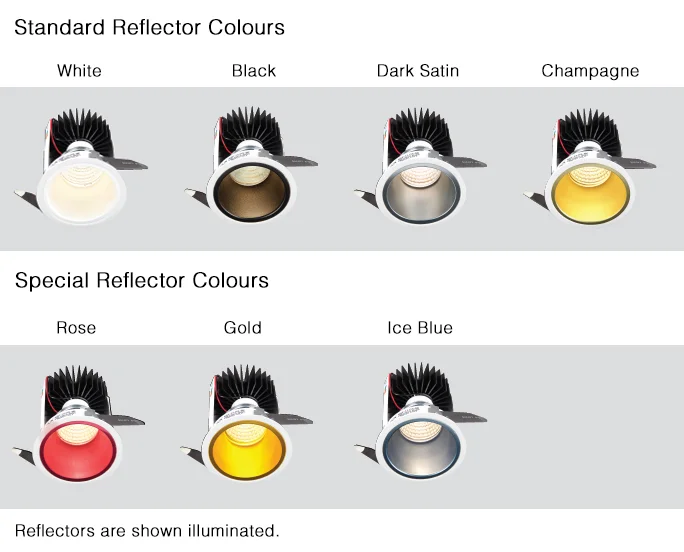

Reflector Finishes
White, Black, Dark Satin, Rose, Champagne, Gold, Ice Blue
Materials
Anodised aluminium reflector and heatsink.
304 stainless steel fascia
